產品名稱：
1SNTG扣壓套筒
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

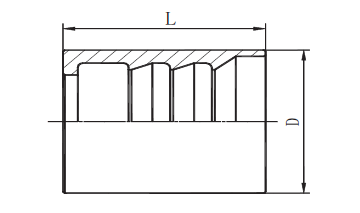

| 訂貨號 | 軟 管 | 尺 寸 | |||
| 公稱內徑 | 標號 | L | D | ||
| 1SN03TG | 4 | 3 | 17 | 27 | |
| 1SN04TG | 6 | 4 | 19 | 30 | |
| 1SN05TG | 8 | 5 | 21 | 31 | |
| 1SN06TG | 10 | 6 | 23 | 32 | |
| 1SN08TG | 12 | 8 | 28 | 34 | |
| 1SN10TG | 16 | 10 | 31 | 37 | |
| 1SN12TG | 20 | 12 | 34 | 43 | |
| 1SN14TG | 22 | 14 | 37 | 43 | |
| 1SN16TG | 25 | 16 | 41 | 50 | |
| 1SN20TG | 32 | 20 | 49 | 59 | |
| 1SN24TG | 40 | 24 | 55 | 74 | |
| 1SN32TG | 50 | 32 | 68 | 78 | |
*適用國標一層鋼絲編織橡膠管
